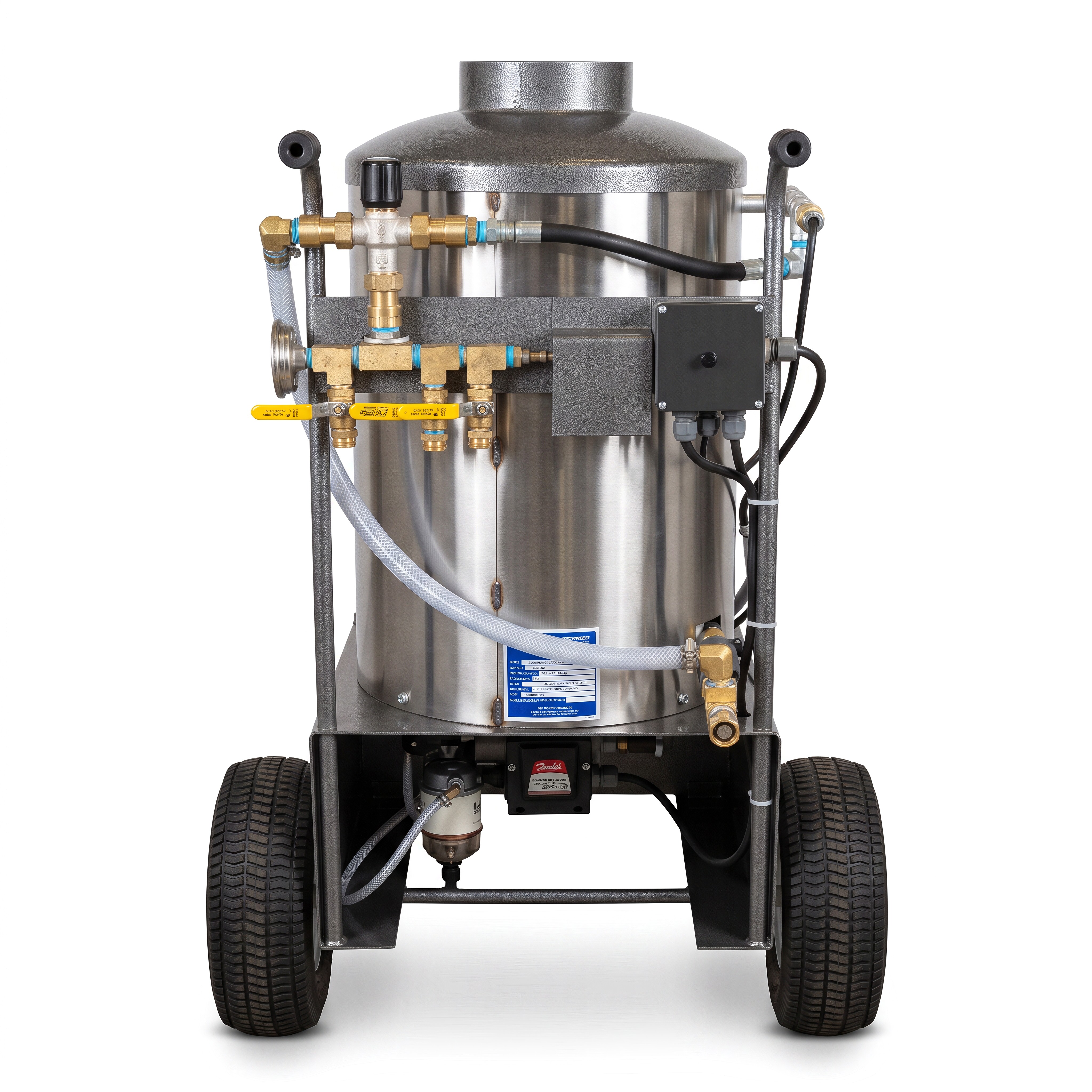

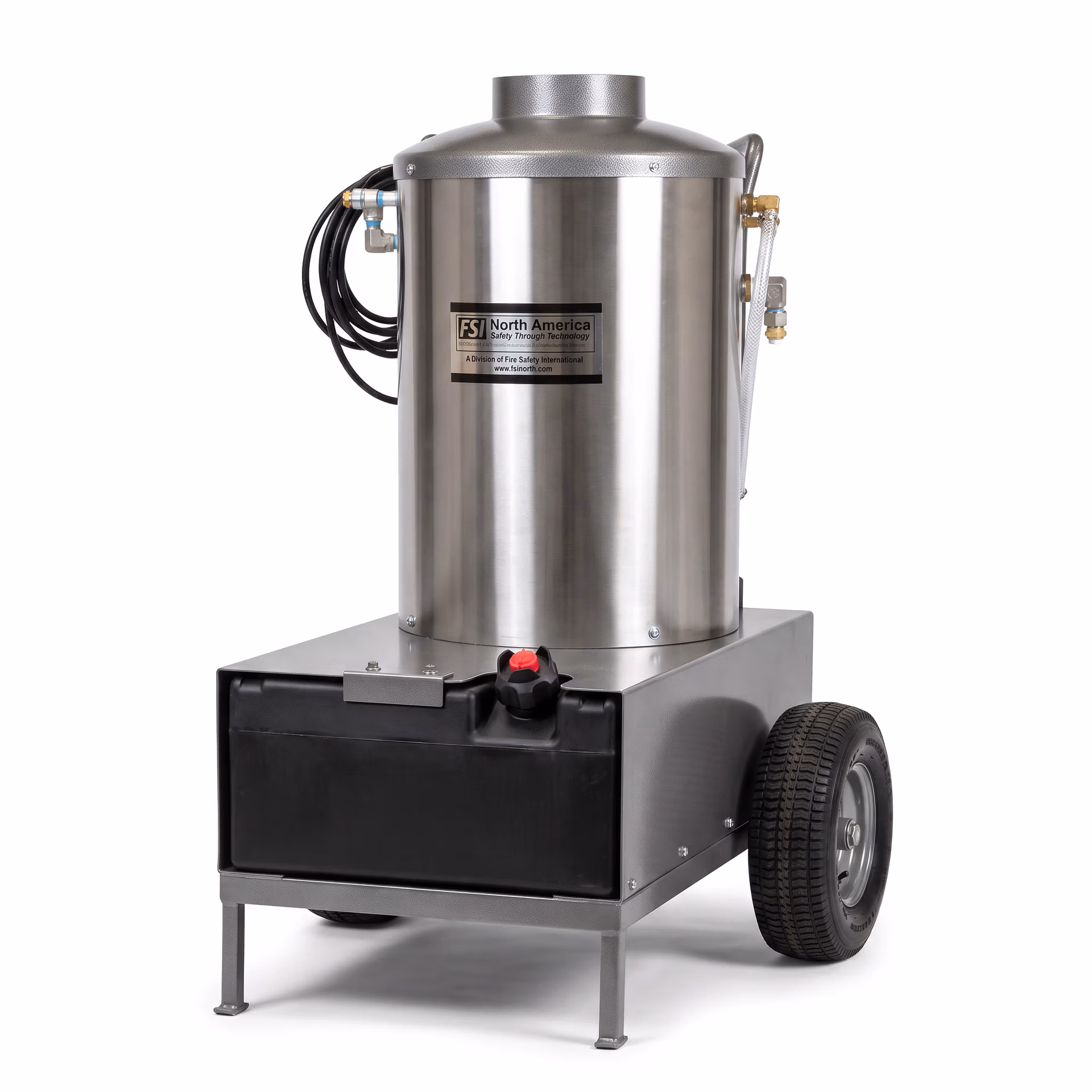

FSI HEAT 200A – Heavy Duty Multi-Fuel Portable Water Heater – 440000 Btu – 14 GPM

The FSI® HEAT 200A Multi-Fuel Water Heater is a heavy duty, wheeled cart style portable water heater: 440,000 BTU with a 14 GPM (56 LPM) total flow rate. It includes a hot/cold water mixing valve with a built-in anti-scald mechanism, three GHT water outlets with shutoff valves, an in-line analog temperature gauge, and a removable 9 gallon (34 L) fuel container. The HEAT 200A supplies hot water to FSI hazmat decon showers as well as other makes and models.

Specifications

• Output: 440,000 BTU
• Total flow rate: 14 GPM (56 LPM)
• Max temperature: 210°F (99°C)
• Fuel: Diesel #1 or #2, JP4, JP8, Home Heating Oil, Kerosene
• Fuel container: 9 gallon (34 L) plastic, removable
• Power requirement: 115V / 1 Ph / 60 Hz, 15 amps (220V 50 Hz models available at no added charge; simply specify with order)
• Water input connection: Single 3/4″ (19 mm) GHT
• Water output connections: 3 x 3/4″ GHT outlets with shutoff valves
• Mixing valve: Hot/cold with built-in anti-scald mechanism
• Temperature gauge: In-line analog
• Weight: 330 lbs (150 kg); shipping weight 475 lbs (216 kg)
• Dimensions: Approx. 47″ H x 30″ W x 39″ D; shipping approx. 44″ W x 45″ L x 48″ H

Compliance

Major components: Burner and Controls UL Listed to comply with ANSI/UL 296 and certified to CAN/CSA B140.0. Accepted by N.Y.C. M.E.A.

Options

Booster pump offered P.O.A. 10 ft fuel line extension to allow connection to an external fuel source, priced P.O.A.
