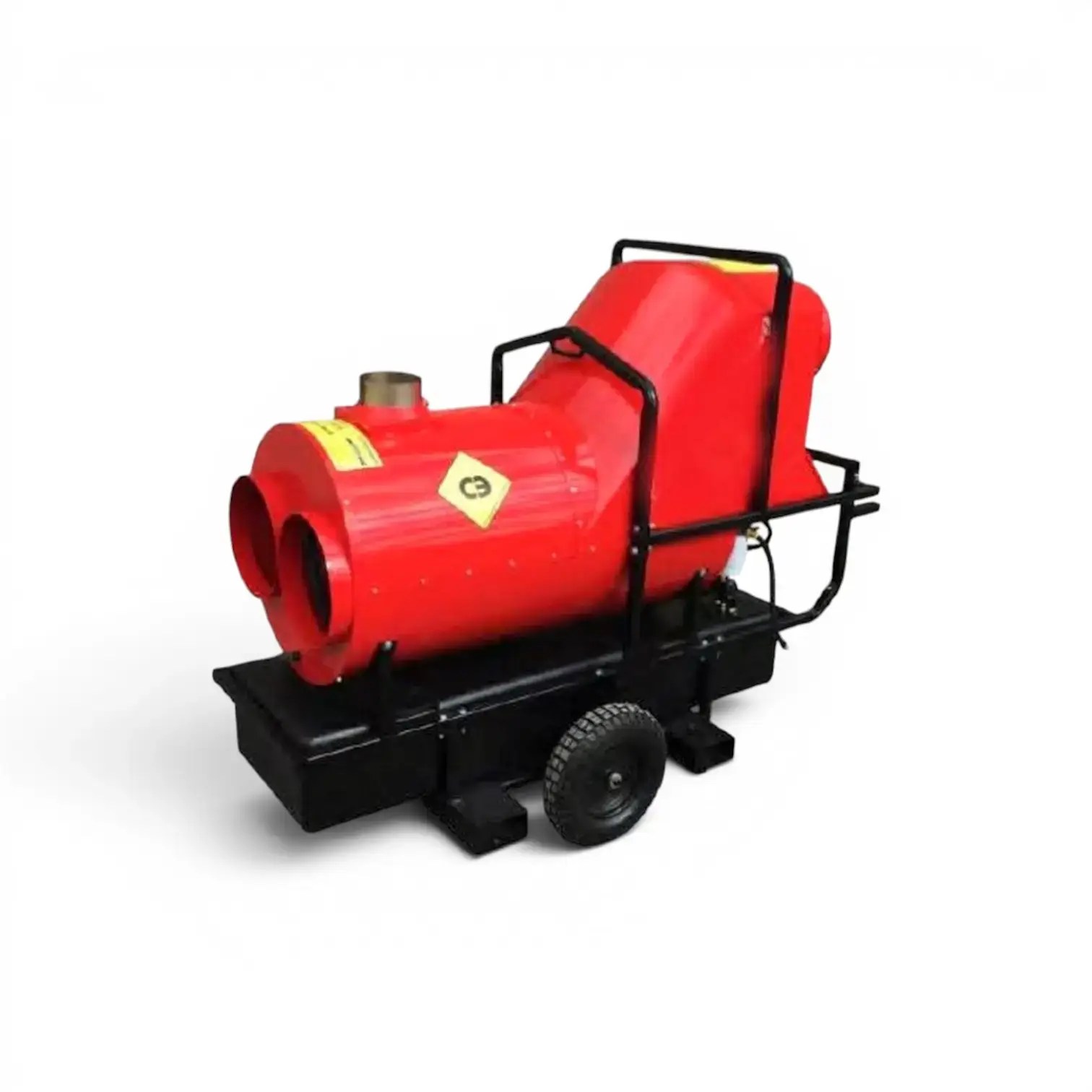

F-HVF4101HD – Air Heating Unit – 575,000 Btu

Name: F-HVF4101HD - AIR HEATING UNIT - 575,000 BTU - FSI North America
SKU: FSI-F-HVF4101HD

Oil indirect fired dual control max. 575,000 BTU/HR (150+ kWh) air heater, 240˚F+ Heat Rise, 115V, 11.5 amp, 46 gallon tank, 15.4 hr. run time, 5,500 cfm, output temp. rise 200 degrees F with Ducting: Air outlets: Two 12” or 1 x 16”, Inlets: Two 12” or 1 x 16” Duct Length: 150ft; approx. 600lbs. and complete with forklift pockets – heats approx. 1,000 sq. ft.; approx. 77″ L X 31″ W X 58″ H; runs on diesel # 1, # 2, kerosene, JP-8, Jet A fuels – NG/LP Easy Switchover Valve; can be operated in fan only mode – easily maneuvered by one/two persons on large pneumatic wheels. With remote thermostat control. CSA – UL – ULC approved in US and Canada CAN/CSA-B140.0-03 – general requirements for oil burning equip. CSA B140.8-1967 Portable industrial oil-fired heaters.

✓

NFPA 1851 Compliant

All FSI showers are ideal for firefighter wash-down / decontamination immediately after exiting the fire scene and prior to removal of any PPE.

✓

OSHA Compliant

FSI shower systems comply with OSHA 29 CFR 1910.120 (HAZWOPER) and help meet the OSHA heat-illness requirement of water, rest, and shade.

✓

ANSI/ISEA 113 Compliant

All FSI Portable Hazmat Decon Shower Systems conform to ANSI/ISEA 113 — American National Standard for Fixed and Portable Decontamination Shower Units.
