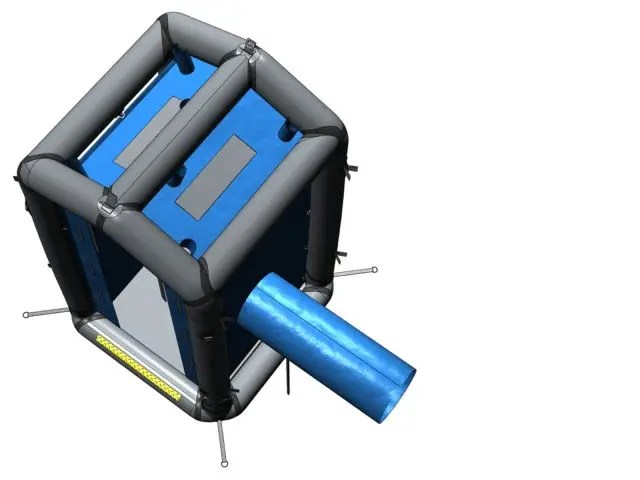

DAT1010S – First Responder Decon Shower

DAT®1010S

Dimensions: 3.5′ W × 3.5′ L × 8′ H (1 × 1 × 2.45 M) · 12 sq. ft. (1.1 M²) · 65 lbs. (29

Kg) · Carton: 28″ × 25″ × 19″ (70 × 63 × 48 cm)

• Config: A compact single stall for patient/victim; decon can commence in

under 60 seconds

• Shower: 7 spray nozzle heads + a 5′ (1.5 M) coiled ½” (13 mm) hose with

multi-function spray gun; approx. 1 gpm (4 lpm) per shower head/trigger gun

• Water: Integral floor with 8″/20 cm berm holds 50 gal. (200 L); 1 × ¾” (19

mm); 1× ¾” (19 mm) GHT threaded inlet hose

• Interior: 2 roll-up windows, 2 skylights, 2 upper air vents, slip-in dirty entry /

clean exit doors each end, 1 × 19″/48 cm HVAC duct, 1 small electrical duct;

velcro’d canopy-to-berm air lock; reflective striping on vents/berms

• Hardware: 4 metal stakes + 4 military-grade stake straps integrated into the

air berms, tie-down ropes, 4 D-rings, hammer

• Included: Electric inflator/deflator with hands free locking inflation adapter

and a high-pressure hose and valve w. universal SCBA fitting, safety cord, 1

pressure relief valve, repair kit, manual, carry bag

• Redundant Features: Velcro closure loops to hang undress/redress kits etc.

on the inlet and outlet side

• Modular Configuration: Can be ordered in a modular configuration to allow

attachment to a second FSI® DAT® Shower or Shelter.

• Compliance: ANSI/ISEA 113: Fixed and Portable Decontamination Shower

Units
